Key Features:

  • High Efficiency and Lightweight: Delivers top performance with over 94% efficiency.
  • Pure Sine Wave Output: Ensures compatibility with sensitive electronic devices.
  • Supports Various Battery Types: Compatible with lithium, gel, and VRLA batteries.
  • Parallel Support: Connect up to 9 inverters for larger energy loads.
  • Real-Time Power Display: Provides accurate real-time data on load power and system status.
  • Lithium Battery Activation: Supports automatic wake-up and start for lithium batteries.
  • Short Circuit Protection: Built-in safety for secure operation.
  • Adjustable Parameters: User-customizable settings to suit specific needs and applications

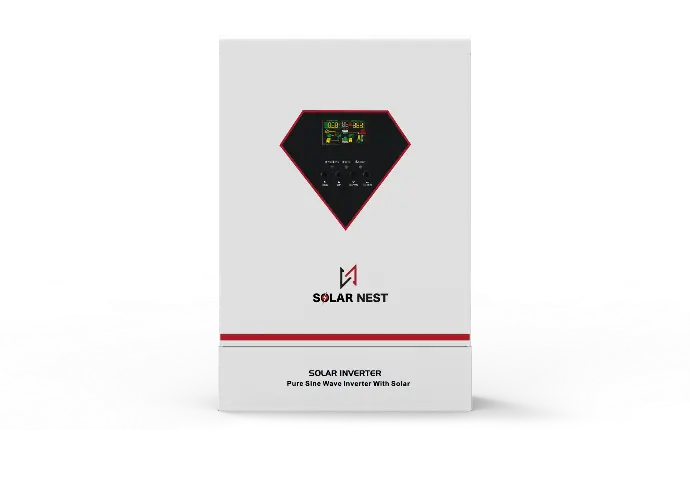

Solar Nest GA6248JMHB


The Solar Nest GA6248JMHB Smart Inverter is designed for high-efficiency energy conversion in a compact and lightweight form. With a rated power of 6200W, pure sine wave output, and support for parallel connection of up to 9 units, this inverter is perfect for a wide range of applications, from residential to commercial energy systems.



Specifications:

Input:

  • Input Format: L+N+PE
  • AC Input Voltage: 220/230/240VAC
  • Input Voltage Range:
    • Normal Mode: 90-280VAC ±3V
    • UPS Mode: 170-280VAC ±3V
  • Frequency: 50Hz/60Hz (Self-adaptive)

Output:

  • Rated Power: 6200W
  • Peak Power: 12,400VA
  • Output Voltage: 220/230/240VAC ±5%
  • Output Frequency: 50/60Hz ±0.1%
  • Transfer Time:
    • 10ms for computer equipment
    • 20ms for household equipment
  • Overload Capability (Battery Mode):
    • 10.5s @110%-150% Load
    • 5.5s @150%-200% Load
    • 200ms @>200% Load
  • Efficiency: Peak efficiency >94%

Battery Specifications:

  • Rated Voltage: 48VDC
  • Constant Charging Voltage (Adjustable): 56.4VDC
  • Float Charging Voltage (Adjustable): 54VDC

PV (Solar) Charger:

  • Maximum PV Input Wattage: 6200W
  • MPPT Tracking Range: 60~500VDC
  • Best Vmp Working Range: 300~400VDC
  • Maximum PV Input Voltage: 500VDC
  • Maximum PV Input Current: 18A
  • Maximum PV Charge Current: 120A
  • Maximum AC Charging Current: 100A
  • Maximum Charging Current: 120A

Display & Communication:

  • LCD Display: Shows operating mode, load, input/output status, and more.
  • Communication Ports:
    • RS232: Baud rate 2400
    • Expansion Slot: Lithium battery BMS communication card, Wi-Fi
    • Parallel Interface: Optional, supports up to 9 inverters

Environmental Specifications:

  • Operating Temperature: -10℃ to 50℃
  • Storage Temperature: 15℃ to 60℃
  • Operating Humidity: 20%-95% (non-condensing)
  • Altitude: Recommended operation below 1000m, derating above 1000m up to a maximum of 4000m (per IEC62040)
  • Noise Level: ≤50dB

Physical Dimensions:

  • Size: 495mm x 312mm x 125mm
  • Weight: 8.7 kg
