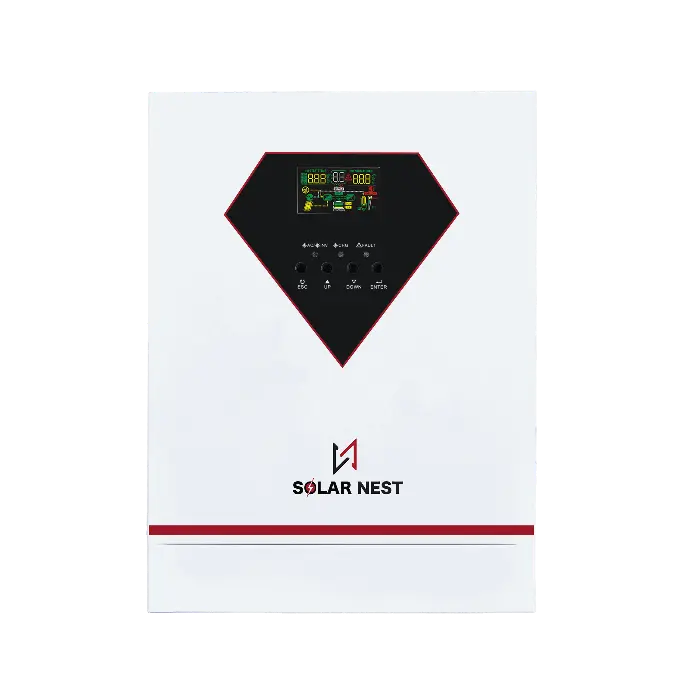

Solar Nest GA3024EMH


A compact 3000W inverter with real-time load display, pure sine wave output, and support for various battery types, including lithium. It features MPPT technology and a wide PV input range, delivering efficient power management for small to medium solar setups.


Key Features :

  • High Power Density: Compact design for greater efficiency and power.
  • Adjustable Parameters: Customize settings to meet different usage scenarios.
  • Lithium Battery Communication Support: Compatible with external Wi-Fi and generator self-start functionality.
  • Pure Sine Wave Output: Suitable for sensitive electronic devices.
  • Wide PV Input Range: Accepts inputs from 40-500V for greater flexibility.
  • Short Circuit Protection: Built-in safety for secure operations.

Specifications:

  • Input:
    • Input Format: L+N+PE
    • AC Input: 220/230/240VAC
    • Input Voltage Range: 90-280VAC (Normal Mode), 170-280VAC (UPS Mode)
    • Frequency: 50Hz/60Hz (Self-adaptive)
  • Output:
    • Rated Power: 3000W
    • Peak Power: 6000VA
    • Output Voltage: 220/230/240VAC ±5%
    • Transfer Time: 10ms for computer equipment, 20ms for household equipment
    • Peak Efficiency: >94%
  • Battery:
    • Rated Voltage: 24VDC
    • Constant Charging Voltage: 28.2VDC (Adjustable)
    • Float Charging Voltage: 27VDC (Adjustable)
  • Charger:
    • MPPT Tracking Range: 40~500VDC
    • Max PV Input Wattage: 3000W
    • Max PV Charge Current: 100A
    • Max AC Charging Current: 60A
  • Operating Conditions:
    • Operating Temperature: -10℃ to 50℃
    • Storage Temperature: -15℃ to 60℃
    • Operating Humidity: 20% to 95%
    • Noise: ≤50dB
  • Physical Parameters:
    • Dimensions: 395mm x 285mm x 118mm
    • Weight: 6 kg
